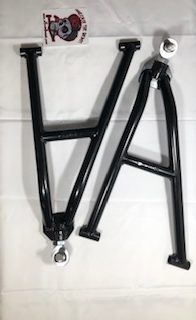

ORB FORWARD ARCHED HEIM A-ARMS – XP TURBO -1000XP

• Will not come with sway bar mounts.
• 2017 & UP model RZR’s will need to order our bushing kit w/ sleeves.
• Accepts factory front sway bar on upper a-arm with Fox shocks
• Kit includes  left upper a-arm, right upper a-arms, left lower a-arm, right lower a-arm
• 1.5” forward
• Built from 1.25 0.120 wall DOM
• Uses stock or stock replacement bushing (bushings not included)
• 2.5” of additional ground clearance
• Uses 7/8  chromoly heims with customs king pins designed for easy installation
• Fully adjustable camber
• Designed for stock ride height with shock mounted at stock location
• Must use 14” wheel or larger or steering stops
• Run up to a 33” tire
• Recommend to run steering stops with stock axles
• Gives a better approach angle
• Give longer wheel base for more stability


  A-arm Product Details

  Check heim pins before each ride to ensure they are tight. We recommend to use TRICK SHOT (available on website)to keep heims from getting tight or squeaking. DO NOT USE ANY AEROSOL BASED LUBRICANT.
